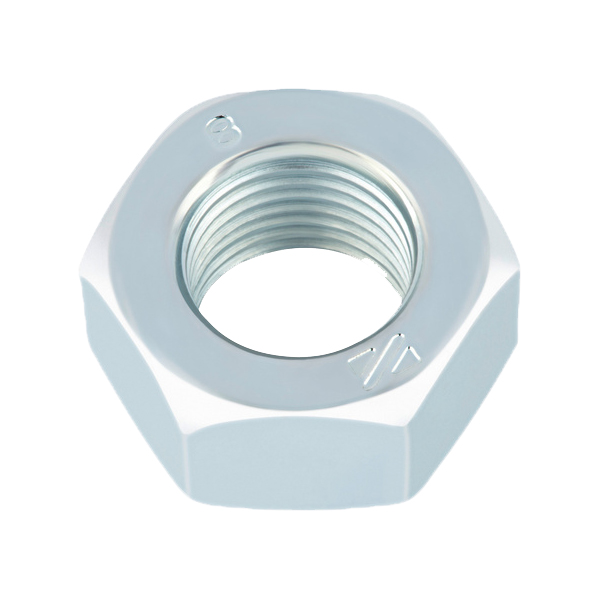

ISO 8673
Ürün Açıklaması
| Anma Çapı Thread d | da | dw min |
e min |
m |
s | |||
|---|---|---|---|---|---|---|---|---|
| max | min | max | min | max. | min. | |||
| M8 x 1 | 8,75 | 8,00 | 11,63 | 14,38 | 4,0 | 3,7 | 13,00 | 12,73 |
| M10 x 1 | 10,8 | 10,0 | 14,63 | 17,77 | 5,0 | 4,7 | 16,00 | 15,73 |
| M12 x 1,5 | 13 | 12 | 16,63 | 20,03 | 6,0 | 5,7 | 18,00 | 17,73 |
| M14 x 1,5 | 15,1 | 14,0 | 19,64 | 23,36 | 7,0 | 6,42 | 21,00 | 20,67 |
| M16 x 1,5 | 17,3 | 16,0 | 22,49 | 26,75 | 8,0 | 7,42 | 24,00 | 23,67 |
| M20 x 1,5 | 21,6 | 20,0 | 27,7 | 32,95 | 18,0 | 16,9 | 30,00 | 29,16 |
| M24 x 2 | 25,9 | 24,0 | 33,25 | 39,55 | 21,5 | 20,2 | 36 | 35 |
